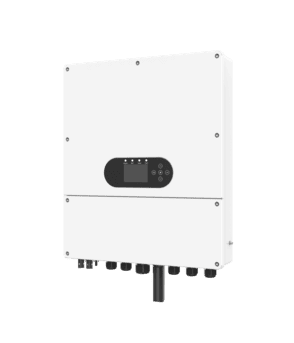

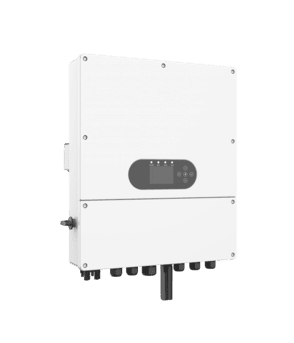

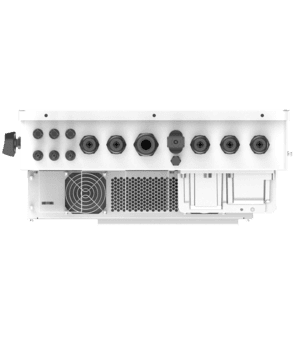

LS Series Inverter
- 3-8 kW
- Work with DL5.0X/DL5.0C/PowerboxPro/Powerbrick
The LS series storage inverter is designed for residential hybrid system.The inverter can work with Dyness low-voltage lithium battery DL5.0X/DL5.0C/PowerboxPro/Powerbrick to maximize self-consumption and provide backup power if the grid fails and there is not enough PV power to cover load demand.The inverter can automatically switch to back-up mode in less than 4ms.
Product Features
-
lP66 protection
Colorful touch LCD -
CT phase sequence
Self-correcting -
16-Channel Hybrid
Max.16pcs parallelfor on-grid and off-grid operation -
Multi-Charge
Support multiplebatteries parallel and generator charging -
Plug-Play BMS
Automatic communication with battery BMS with out manual setup
Technical Parameters
-
Product Model D3.0K-LS Nominal Battery Voltage 48 Max.Charge/Discharae Power(W) 3000/3300 No.of MPPTrackers 2 Nominal Power Output To Grid (VA) 3000 Size(W*H*D) 501*586*193 Net Weight 17 kg -
Product Model D3.6K-LS Nominal Battery Voltage 48 Max.Charge/Discharae Power(W) 3600/3960 No.of MPPTrackers 2 Nominal Power Output To Grid (VA) 3600 Size(W*H*D) 501*586*193 Net Weight 17 kg -
Product Model D5.0K-LS Nominal Battery Voltage 48 Max.Charge/Discharae Power(W) 5000/5500 No.of MPPTrackers 2 Nominal Power Output To Grid (VA) 5000 Size(W*H*D) 501*586*193 Net Weight 17 kg -
Product Model D6.0K-LS Nominal Battery Voltage 48 Max.Charge/Discharae Power(W) 6000/6600 No.of MPPTrackers 2 Nominal Power Output To Grid (VA) 6000 Size(W*H*D) 501*586*193 Net Weight 17 kg -
Product Model D8.0K-LS Nominal Battery Voltage 48 Max.Charge/Discharae Power(W) 8000/8800 No.of MPPTrackers 2 Nominal Power Output To Grid (VA) 8000 Size(W*H*D) 501*586*193 Net Weight 17 kg
